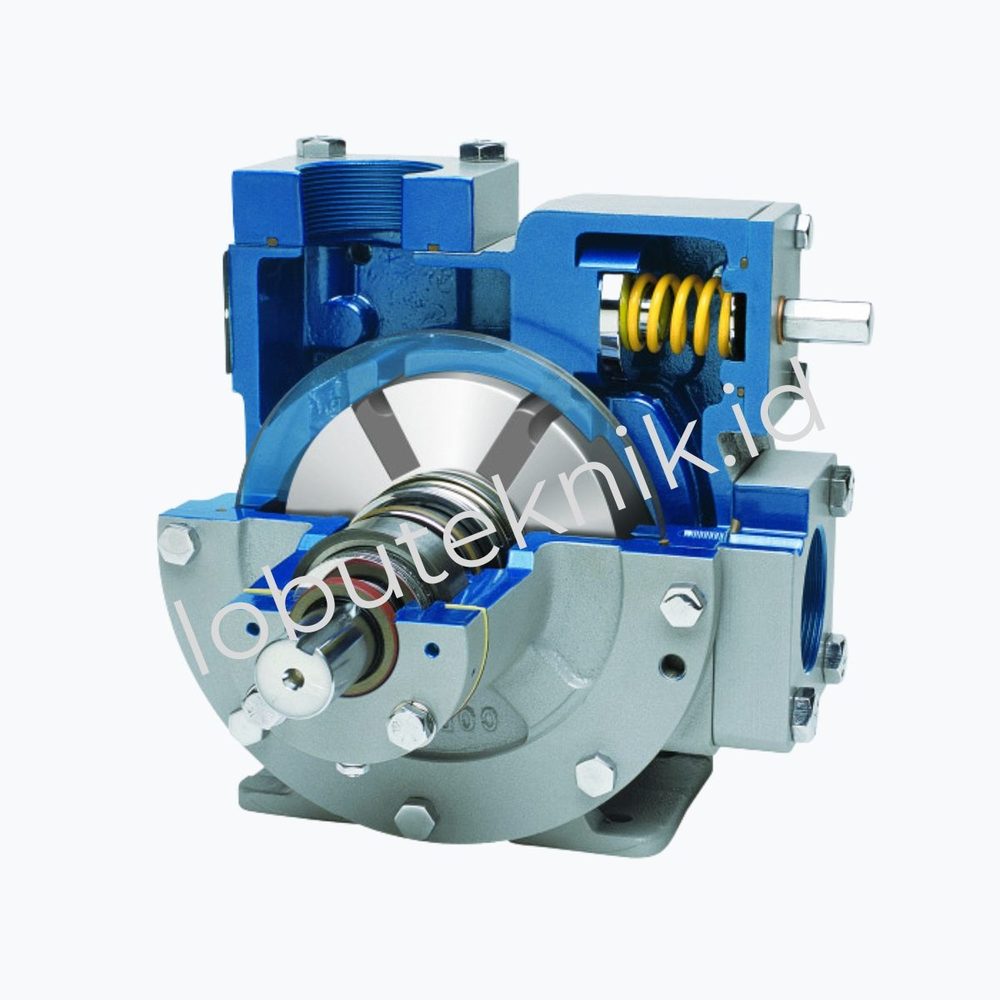

Corken PZ Series PZ10 2 in. NPT Cast Iron Sliding Vane Pump
Rotary Vane Pump · Corken
Pompa Corken PZ-10 adalah pompa vane tipe Z-Series yang dirancang khusus untuk menangani transfer cairan gas seperti LPG, propana, butana, dan amonia (NH₃).
Dikenal karena daya tahan tinggi, performa stabil, dan efisiensi luar biasa, pompa ini banyak digunakan di SPBE, depot LPG, truk tangki, dan fasilitas industri gas.
Spesifikasi
| Parameter | Detail |
|---|---|
| Model | PZ10 |
| Standard connections | 2 in. NPT |
| Maximum differential pressure | 125 psid (8.6 bar) |
| Temperature range | Up to 300°F (149°C) |
| Maximum working pressure | 200 psi (13.8 bar) |
| Maximum speed | 800 RPM |
| Fluids handled | Refined petroleum products and industrial solvents |
| Case/Head/Flanges Material | Ductile iron ASTM A536 |
| Weld flanges | Steel ASTM A516 |
| Rotor/Bearing cap | Ductile iron ASTM A536 |
| Sideplates | Cast iron Class 30 |
| Vanes and vane drivers | Advanced polymer |
| Bypass valve | 17-4 PH Stainless steel |
| Bypass valve spring | Steel |
| Seal seat | Silicon carbide |
| Seal metal parts | Steel |
| Shaft | 8620 steel |
| Thrust bearing | Steel |
| O-rings | Viton |
Aplikasi
Chemical and petrochemical process, Oil and natural gas production, Alternative fuels, Refined petroleum products, Truck & transport, Liquid terminals
